- Natural or LP gas
- 65,000 BTU (19KW) burner
- 1/2" gas inlet (NPT)
- Supply line pressure
- Natural - 4.5" W.C. min - 10.0" W.C. max (11.2 - 24.9 mbar)
- LP - 11.0" W.C. min - 13.0" W.C. max (27.4 - 32.4 mbar)

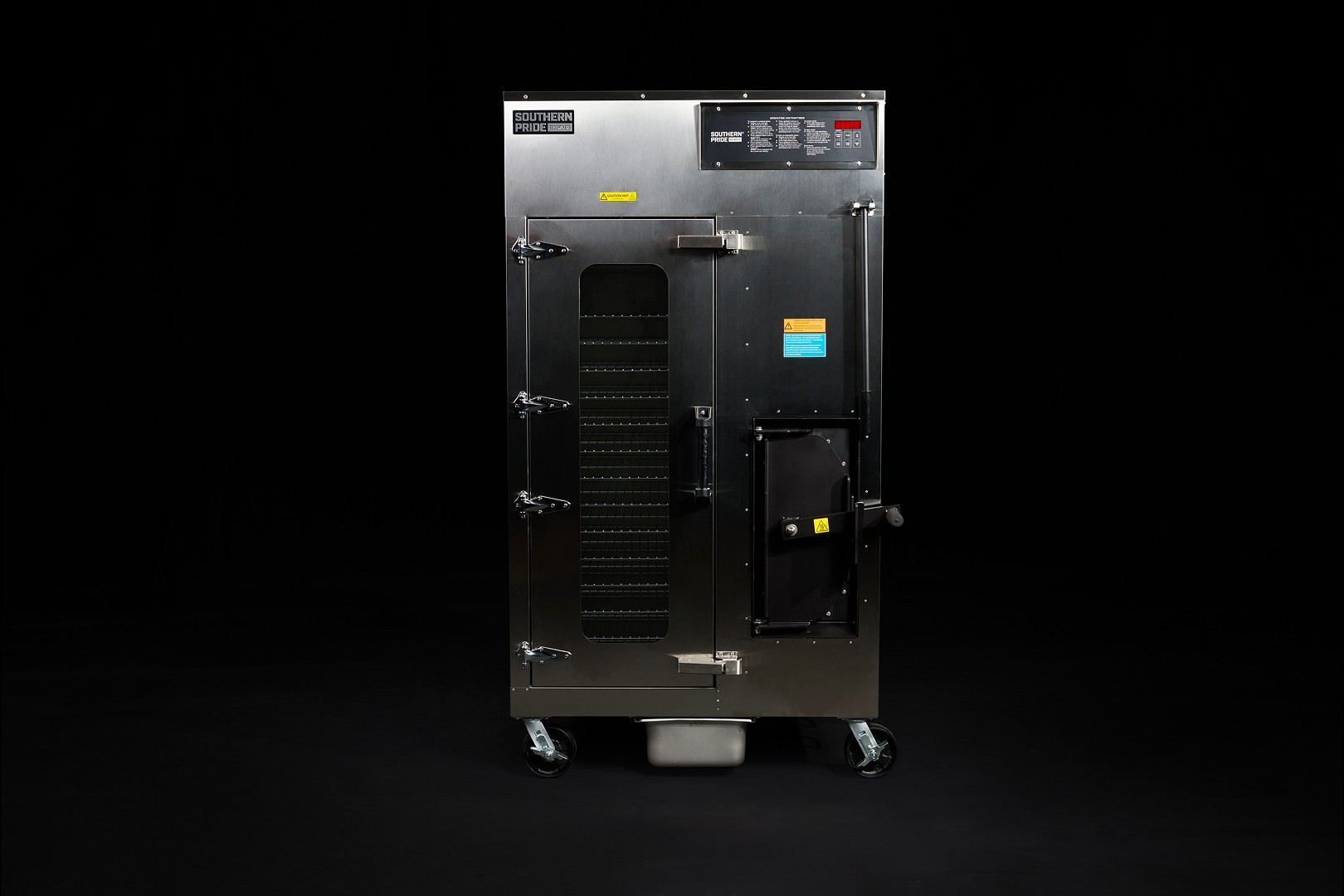

Gas Smoker
SRG-400
The SRG-400 gas-fired stationary rack smoker offers a compact design with large capacity coming standard with (14) 26” x 18” wide product racks. The rack slide system allows the product racks to be placed at varying heights to maximize the smoker’s capacity.
42
Pork Butts
70
St. Louis Ribs
72
Whole Chickens
18
Beef Briskets
Features
Convection Air System
The 65,000 BTU (19KW) burner heats the smoker cabinet and ignites the 2-3 fireplace size logs in the firebox to obtain the desired flavor, aroma, and texture.
The convection fan draws the smoke from the firebox and circulates the smoke throughout the smoker cooking cabinet.
The Subterthermic® flue increases the smoke flavor of the product, increases the heat efficiency, and reduces the wood usage.
Smoker Interior
The entire smoker interior is stainless steel ensuring easy cleaning and decades of trouble-free use.
The smoker comes standard with (14), 18" x 26" (457 x 660mm) product racks and has a maximum capacity of (27) product racks with 1 1/2" (38mm) spacing.
Programmable Digital Control Panel
The standard programmable digital cook and hold control allows for cook temperature selection between 140° to 325°F (60° to 163°C), cook time, and hold temperature and allows for programming of 30 preset menus.
Smoker Exterior
The smoker exterior is stainless steel ensuring easy cleaning and decades of trouble-free use.
-
Glass product doors
Tempered glass in the center of the product door allows for the viewing of the product during the cook cycle without opening the doors.
Trailer mount legs
Required for trailer mounting to customer supplied trailer.
Stainless steel product racks
The standard nickel chrome product racks can be upgraded to stainless steel product racks.
Chrome vertical rib racks
Holds 13 slabs of ribs per rack to maximize capacity. Total of 7 racks. This is a substitution of standard chrome product racks.
Stainless steel vertical rib racks
The standard nickel chrome rib racks can be upgraded to stainless steel rib racks. Total of 7 racks. This is a substitution of standard chrome product racks.
"When we're going to do something, we need the best things to do so and that is why we choose Southern Pride."
Innovations Chef, Anheuser-Busch
Specifications
PDF 120v Specification Sheet
PDF 230v Specification Sheet
Gas Specifications
Electrical Specifications
- 120 volt AC, 60 hertz, 1-phase, 15 amp wiring w/NEMA 5-15P plug -or-
- 230 volt AC, 50 hertz, 1-phase, 15 amp wiring w/no plug provided
Ventilation Specifications
The smoker must be vented in accordance with the Owner's Manual and the installation must comply with all relevant local and national codes and in a manner acceptable to the authority having jurisdiction.
Smoker Specifications

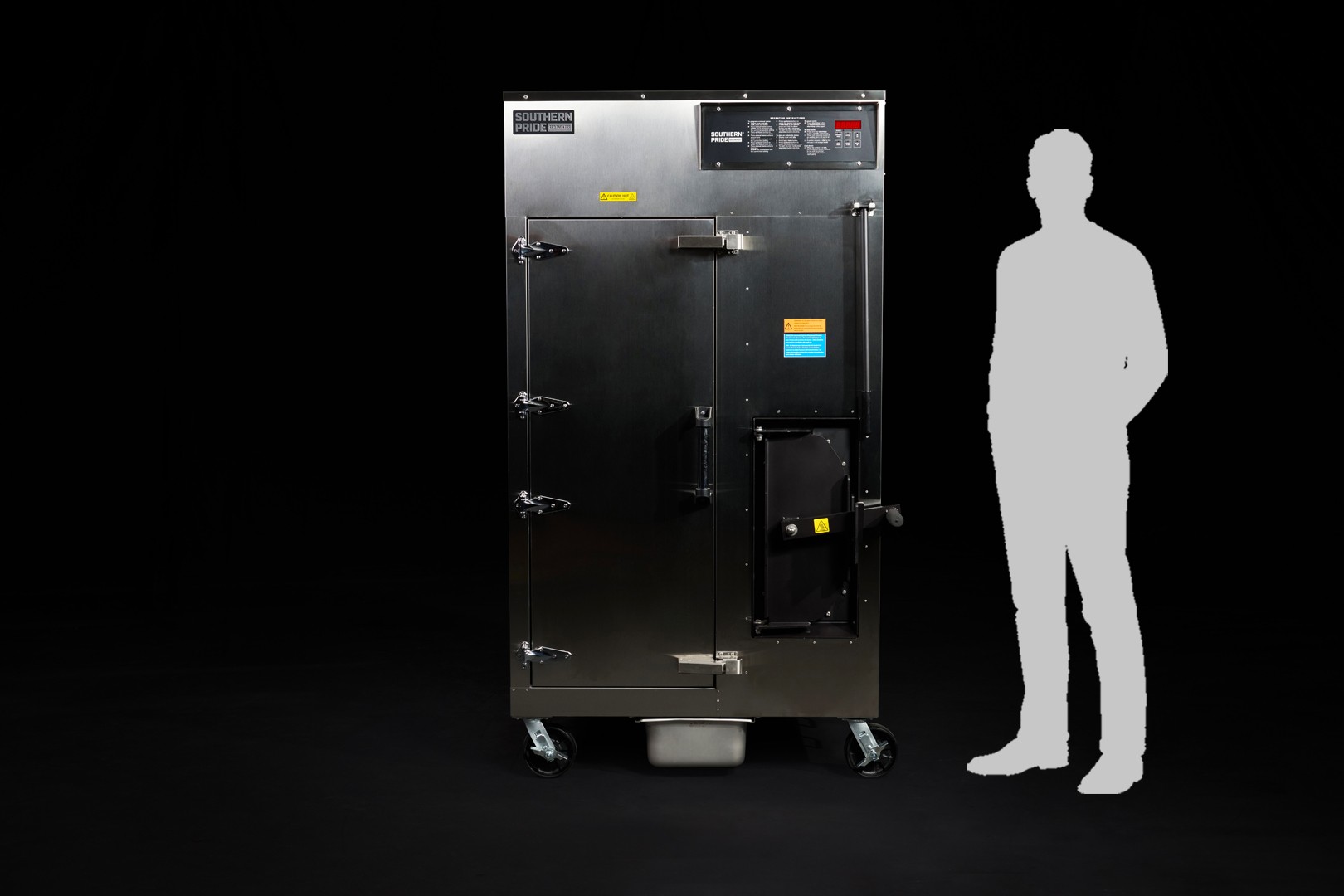

- Smoker exterior dimensions - 43"w x 32 1/8"d x 77"h (1092 x 816 x 1956mm)
- Smoker weight - 780 lbs (354kg)
Approximate Smoker Capacities
- Pork Butts: 42 pieces (8-10 lbs)(3.6 - 4.5 kg) each
- St. Louis Ribs: 70 pieces (2.75 lbs)(1.2kg) each
- w/optional rib racks the smoker can hold 91 ribs.
- Whole Chicken: 72 pieces (3-4 lbs)(1.4 - 1.8 kg) each
- Beef Brisket: 18 pieces (12-15 lbs)(5.4 - 6.8 kg) each
Capacities will vary based on product specifications and loading method.
